Thermador wine column and under-counter repair

Small cabinets, harder working conditions

Wine preservation columns and under-counter refrigeration are the equipment most often installed in the worst place in the house. A wine column goes into a butler’s pantry with a solid door and no ventilation. A beverage or drawer unit goes into an island base surrounded by cabinetry, or — increasingly on this stretch of the beach — into an outdoor kitchen on a covered lanai.

All of these are sealed refrigeration systems that must reject heat into the space immediately around them. Where that space is warm, still or salty, they struggle.

Two zones, one complaint

A dual-zone wine column holds a warmer red zone above and a cooler white or sparkling zone below, and each is controlled independently. When one zone drifts and the other holds, the fault is almost always in that zone’s own control loop rather than in the compressor, which is still clearly doing its job for the other half of the cabinet.

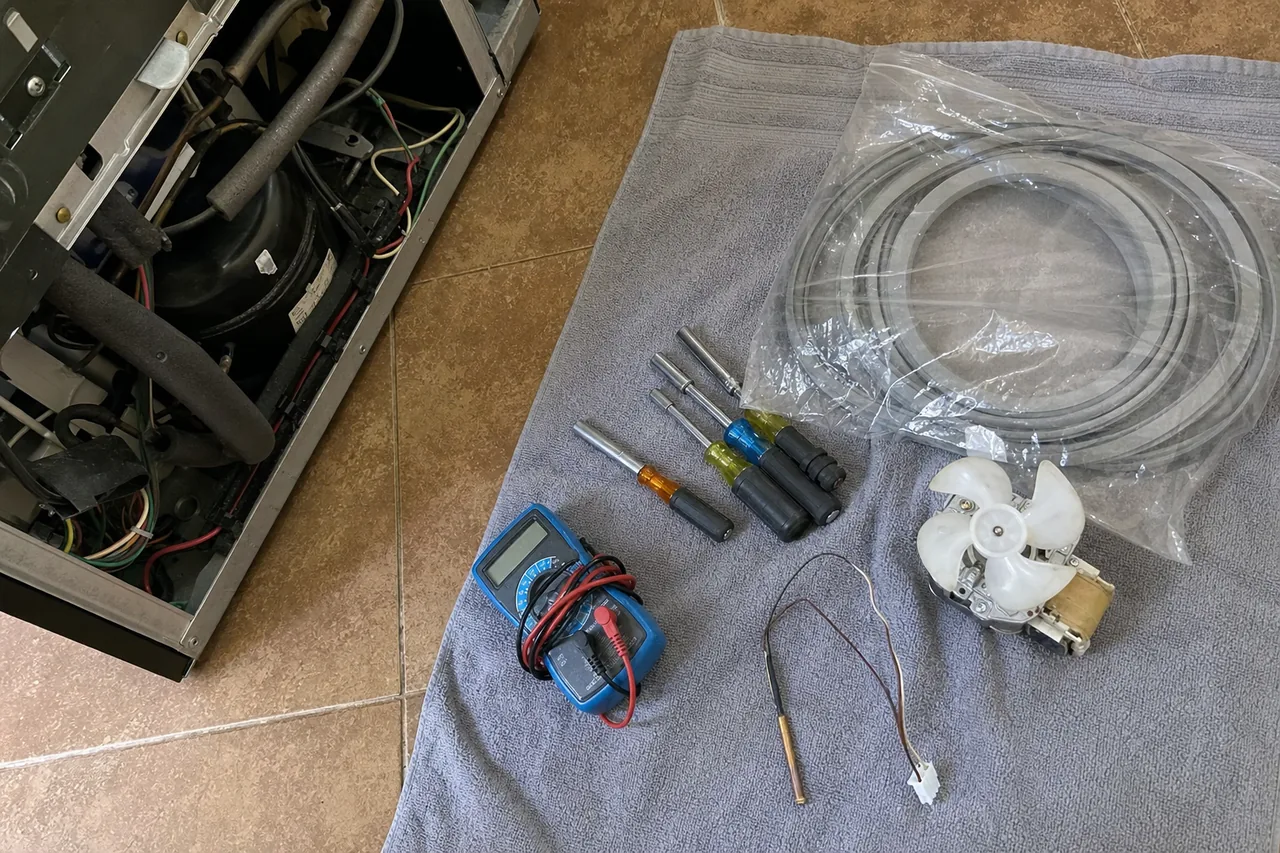

We work through it in order: the zone’s evaporator fan, the damper or valve that directs cold to that zone, the zone thermistor, and the wiring back to the control. Only when all four check out is the sealed system in question.

Owners often report the opposite pattern — both zones warm, compressor running continuously. That is a heat rejection problem, and at the beach it starts at the condenser.

Ventilation is the fault most often built in

Under-counter and column refrigeration vent through a grille, usually at the toe kick or the top of the unit. Cabinetry work frequently blocks it. We have found toe-kick grilles covered by an added floor trim, columns installed in a closet with a solid door, and outdoor units boxed into a stone surround with no clearance at the back.

The appliance runs, the surrounding cavity heats up, and the unit ends up trying to reject heat into air that is already warmer than it should be. The symptom is a cabinet that holds fine in winter and fails every June.

Three blocks from the Atlantic the same restricted airflow also means whatever air does reach the condenser is salt-laden. Fins pack faster, and a coil that would go five years inland can be visibly loaded in under two.

Glass doors, humidity and fogging

Wine columns use insulated glass with a UV-treating coating, and the door has to seal against a cabinet that is deliberately held at higher humidity than a food refrigerator — cork does not like dry air.

When the interior fogs or the frame sweats, the seal has usually failed somewhere. Either the gasket has taken a set and no longer contacts evenly, the door has dropped on a worn hinge, or the glass unit itself has lost its seal and is condensing between the panes. The third case is not repairable in place; the door assembly is replaced.

In a beach house with a high indoor dew point, a marginal seal shows up as fogging far sooner than it would elsewhere. That is a real difference, not an excuse.

Vibration and noise

Wine storage cares about vibration, so these cabinets are built with isolated compressor mounts and shelving designed to damp movement. When a unit starts to buzz audibly in a quiet room, check the simple causes first: a shelf out of its detent, a levelling foot not carrying load, a unit touching the cabinet side. Compressor mount failure is real but far less common than an installation that has shifted.

Outdoor and lanai installations

If a unit lives outdoors on this coast, it needs to be an outdoor-rated appliance, kept covered when not in use, and cleaned on a schedule. Indoor-rated under-counter refrigeration installed outside fails quickly here, and it is worth knowing that before you pay for a repair that will recur.

Flat $129 diagnostic credited toward the work, written estimate first, EPA Section 608 certified technicians for any sealed-system repair, 90 days labor and 365 days parts.
